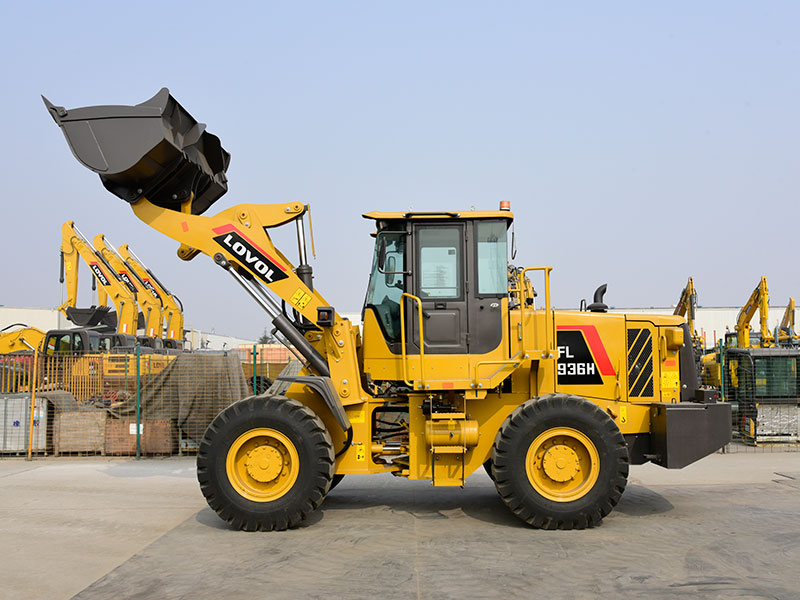

FL936H

The H series features many components which leverage product designs that have delivered reliable and durable machines.

  • Rated Power(Kw /hp):92
  • Operating Weight(kg):10300
  • Bucket Capacity(m³):2-3
Get a quote
  • Product Highlights
  • Product Parameters
  • Engineering Cases
  • Related Products
Get a quote
Product Highlights
  • PRODUCTIVITY
  • RELIABILITY
  • ROBUSTNESS
  • COMFORT
  • ·The proven linkage structure is very efficient which has big breakout force, quick movement and high lifting capacity features.

    ·Optimal designed bucket which can cut into materials easily with small resistance, and could retain more materials.

    ·The bucket has guide plate which can avoid the materials sprinkling to protect bucket cylinder during lifting.

    ·High-efficiency powertrain system is perfectly matched with hydraulic multi-stage power system that makes machine work fast and efficient.

  • ·The H series features many components which leverage product designs that have delivered reliable and durable machines.

    ·Adopt world class engine which provides excellent service and part availability in market.

    ·Optimized layout of pipelines and dual-seal technology can avoid oil leakage and make hydraulic system more reliable.

  • ·Reinforced center-articulated frame which has passed million times fatigue experimental test, 1,000 hours intensive experimental test and 5,000 hours jobsite test, it has been proved to be robust and durable.

    ·Bucket use JF440 steel which are joint-invented with renowned steel factory, it is more robust and wearable.

  • ·The pedals and various control elements utilize humanized design which could reduce the long-time operation fatigue for operator.

    ·High-performance mechanical suspension seat with high-back could makes operator feel comfortable.

    ·Overall view cab delivers wide vision for operator to check the surroundings during operating machines.

Product Parameters
Item
Rated Power
Operating Weight
Bucket Capacity
Engine Model
Max. Breakout Force
Rated Load
Max. Traction Force
Max. Gradeability
Max. Dump Clearance
Dump Reach
Wheel Tread
Wheelbase
Overall Dimension(L×W×H)
Type
Steering Angle Each Direction
Min. Turning Radius
Working Pressure
Boom Lifting Time
Total Cycle Time
Fuel Tank
Hydraulic Tank
Engine Oil
Unit
Kw /hp
kg
-
kN
kd
KN
°
mm
mm
mm
mm
mm
-
-
mm
Mpa
s
s
L
L
L
Parameter
92
10300
2-3
WEICHAI WP6G125E22
98
3000
101
30
2930
1100
1850
2880
7230*2425*3200
Single pump flow diffluence, load - sensing hydraulic system
38º
6020
16
5.6
9.2
150
105
14.5L
Item
Unit
Parameter
Rated Power
Kw /hp
92
Operating Weight
kg
10300
Bucket Capacity
2-3
Engine Model
-
WEICHAI WP6G125E22
Max. Breakout Force
kN
98
Rated Load
kd
3000
Max. Traction Force
KN
101
Max. Gradeability
°
30
Max. Dump Clearance
mm
2930
Dump Reach
mm
1100
Wheel Tread
mm
1850
Wheelbase
mm
2880
Overall Dimension(L×W×H)
mm
7230*2425*3200
Type
-
Single pump flow diffluence, load - sensing hydraulic system
Steering Angle Each Direction
-
38º
Min. Turning Radius
mm
6020
Working Pressure
Mpa
16
Boom Lifting Time
s
5.6
Total Cycle Time
s
9.2
Fuel Tank
L
150
Hydraulic Tank
L
105
Engine Oil
L
14.5L
