E254 Tractor

Lovol E254 tractor adopts an 8+8 synchronizer to shift gears. It is a family-friendly agricultural model developed by the Lovol European technical team. E-series compact tractors have the characteristics of high comfort, good reliability, multiple functions, strong practicability, etc., bringing you a new experience of high efficiency, multi-function, long-lasting power, and comfortable operation.

  • Engine:
  • Model(/):Laidong KM385BT
  • Horsepower(HP):25
Get a quote
  • Product Highlights
  • Product Parameters

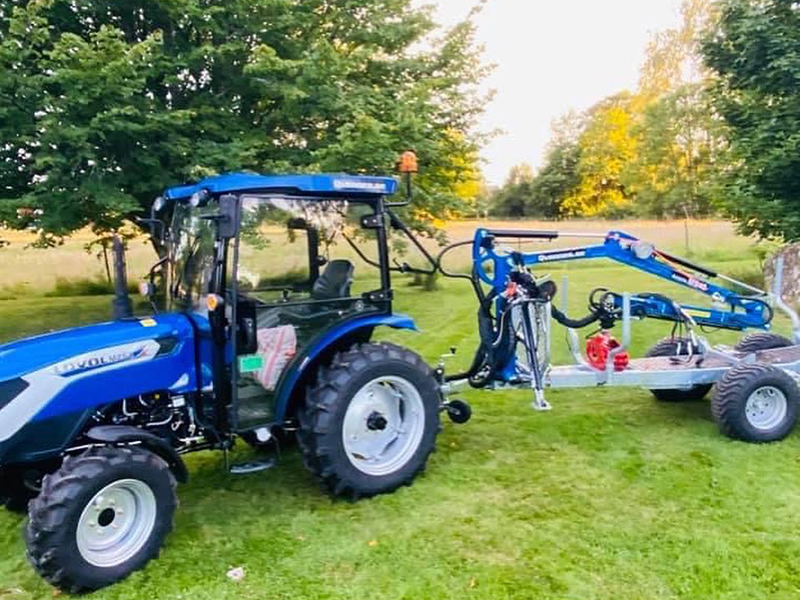

  • Engineering Cases
  • Supporting Tools
Get a quote
Product Highlights
  • Selling point
  • 1. LOVOL TE254 tractor, Small size makes a big difference, a product for farmland (dry field, paddy field), lawn, gardening, greenhouse planting, and other multi-functional application requirements.

    2. Using Laidong 385 engine, satisfy the EuroⅡ, Euro V, and Tier 4 emission standards, torque reserve coefficient≥25%, the traction up to 6.3 KN; Synchronizer 8F+8R gear, easy to shift; Body appearance upgrade, high handling comfort.

    3. Using American Actuant instrument, LOVOL Central piercing cylinder front axle; multiple tires options; optional standard wheelbase and narrow wheelbase models; Optional internal and external air filter, upper and lower exhaust; optional Single pipeline air brake.

    4. Optional single or dual hydraulic output; Using Category I suspension, the most significant lifting force up to 5.2 KN; optional 6/8 splines PTO shaft, optional PTO rotation speed 540/720/1000, swing traction, equipped with a variety of machines and tools, to meet the needs of different operations.

    5. OECD and EC authentication

Product Parameters
Item
Engine
Model
Horsepower
Displacement
Torque
Transmission
Gearshift
Technical route
Speed range
PTO speed
Hydraulic
Lifting power
Three-point suspension type
Hydraulic output flow
Number of multi-way valves
Parameter
length*width* height
Wheelbase
Ground clearance
Turning radius
Weight
Tire size
Unit
/
HP
L
N M
/
/
km/h
r/min
kN
/
L/min
/
mm
mm
mm
m
kg
/
Parameter
Laidong KM385BT
25
1.532
≥89
8+8
Shuttle synchronizer shift
1.81-27.38
540/1000
5.2
Category 1
24
2
3544×1515×2440
1640
328
2.7±0.2
1400
6.5-16/11.2-24


Item
Engine
Model
Horsepower
Displacement
Torque
Transmission
Gearshift
Technical route
Speed range
PTO speed
Hydraulic
Lifting power
Three-point suspension type
Hydraulic output flow
Number of multi-way valves
Parameter
length*width* height
Wheelbase
Ground clearance
Turning radius
Weight
Tire size
Unit
/
HP
L
N M
/
/
km/h
r/min
kN
/
L/min
/
mm
mm
mm
m
kg
/
Parameter
Laidong KM385BT
25
1.532
≥89
8+8
Shuttle synchronizer shift
1.81-27.38
540/1000
5.2
Category 1
24
2
3544×1515×2440
1640
328
2.7±0.2
1400
6.5-16/11.2-24
