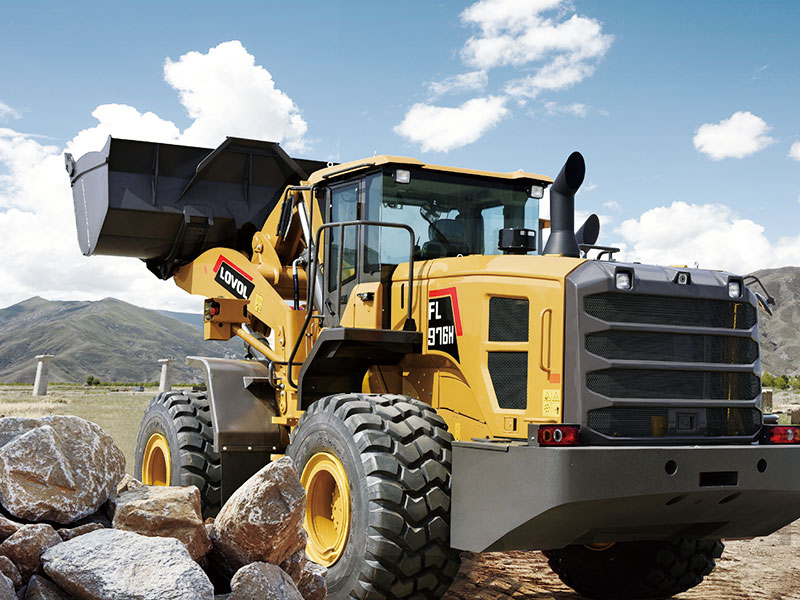

FL976H

LOVOL ETX (European Technology Excellent) cabin adopts skeleton structure which has great vision, solid frame and lower noise feature，these could provide a comfortable working environment for operator.

Rated Power(kW)：180
Operating Weight(kg)：23680
Bucket Capacity(m³)：4.5

Get a quote

Product Manual

Product Highlights
Product Parameters
Engineering Cases
Related Products

 Get a quote

PRODUCTIVITY
RELIABILITY
ROBUSTNESS
COMFORT

·Standard equipped with 4.5m³ bucket, high-efficiency powertrain system is perfectly matched with hydraulic multi-stage power system that makes machine work fast and efficient.
·The proven linkage structure is very efficient which has big breakout force, quick movement and high lifting capacity features.
·Low-effort joystick control system delivers high-efficiency operation with ease and fast.
·The H series features many components which leverage product designs that have delivered reliable and durable machines.
·Adopt world class engine which provides excellent service and part availability in market.
·Optimized layout of pipelines and dual-seal technology can avoid oil leakage and make hydraulic system more reliable.
·Reinforced center-articulated frame which has passed million times fatigue experimental test, 1,000 hours intensive experimental test and 5,000 hours jobsite test, it has been proved to be robust and durable.
·Bucket use JF440 steel which are joint-invented with renowned steel factory, it is more robust and wearable.
·The key components of axles are reinforced which could extend service time of whole axles and makes it more suitable for heavy-duty applications.
·LOVOL ETX (European Technology Excellent) cabin adopts skeleton structure which has great vision, solid frame and lower noise feature，these could provide a comfortable working environment for operator.
·High-back mechanical suspension seat with headrest could make operator feel more comfortable.
·The cabin has micro pressurizing air system that makes the environment cleaner and comfortable.

Item

Rated Power

Operating Weight

Bucket Capacity

Engine Model

Max. Breakout Force

Rated Load

Max. Traction Force

Max. Gradeability

Max. Dump Clearance

Dump Reach

Wheel Tread

Wheelbase

Overall Dimension（L×W×H）

Type

Steering Angle Each Direction

Min. Turning Radius

Working Pressure

Boom Lifting Time

Total Cycle Time

Fuel Tank

Hydraulic Tank

Engine Oil

Unit

m³

Mpa

Parameter

180

23680

4.5

CUMMINS QSL9.3

185

7000

189

3120

1300

2280

3500

8810x3240x3380

Fix&Variable hydraulic system

38°±1º

7290

6.2

10.6

330

175

20L
